16 Core Wall Mount Fiber Termination Box / Fiber Optic Termination Box

Name: 16 Core Wall Mount Fiber Termination Box Fiber Optic Termination Box
Brand: KCO, Kocent Optec Limited
Price: 1 USD

Buy cheap 16 Core Wall Mount Fiber Termination Box / Fiber Optic Termination Box product

Brand Name : KCO, Kocent Optec Limited

Model Number : KCO-ODP-16W

Certification : ISO9001

Place of Origin : Guangdong, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : Western Union,T/T,L/C

Supply Ability : 20,000 pcs/ month

Delivery Time : 7~14 days after get payment

Packaging Details : carton box, wooden pallet

Material : ABS+PC

Insertion loss : 0.15dB

Return loss : 55dB

Connector : SC, ST, LC, FC, E2000, etc

Application : outdoor

Capacity : 16 fibers fo

Contact Now

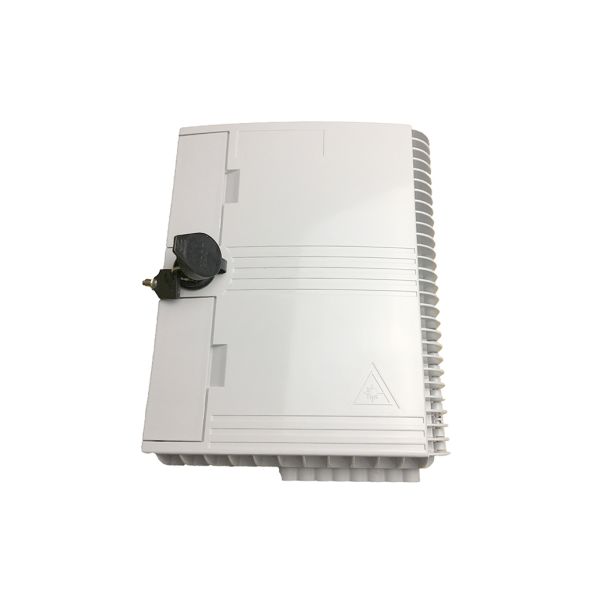

16 Core Wall Mount Fiber Termination Box

The KCO-ODP-16W Outdoor Fiber Optic Distribution Box serves as a connection point for cable termination, enabling jumper line access to light switches. This terminal box provides essential protection for fiber optic cable connections and is designed for both indoor and outdoor applications.

Key Features

Wall mountable or pole mountable installation
IP67 waterproof rating for outdoor and indoor use
Excellent armor plate construction
Designed for large splicing tray capacity
One to four entry points available
Complete metal assemblies and strength chips
Comprehensive accessory package
Large capacity design with reliable performance
Enhanced pigtail protection
Easy installation and maintenance
Wide application compatibility

Applications

FTTH access networks
Telecommunication networks
CATV networks
Data communications networks
Local area networks

Technical Specifications

Operating Temperature: -25°C to +45°C
Relative Humidity: ≤95% at 40°C
Atmosphere Pressure: 70KPa to 106KPa
Insulated Resistance: ≥2×10⁴MΩ/500V DC
Dielectric Strength: ≥15KV DC/1min, no spark-over or flying arc
Fiber Bend Radius: ≥40mm

Dimensions & Capacity

Model	Capacity	Dimensions (L×W×H)	Weight
KCO-ODP-16W	1×16 PLC splitter, 16 SC adaptors 2×16 PLC Splitter, 16 SC adapters	292×218×83 mm	1.5kg

Package Contents

Terminal box: 1 unit
Keys for lock: 2 keys
Wall mount installation accessories: 1 set

Product Tags:

optical termination box

fibre termination box
